油耐压测试仪

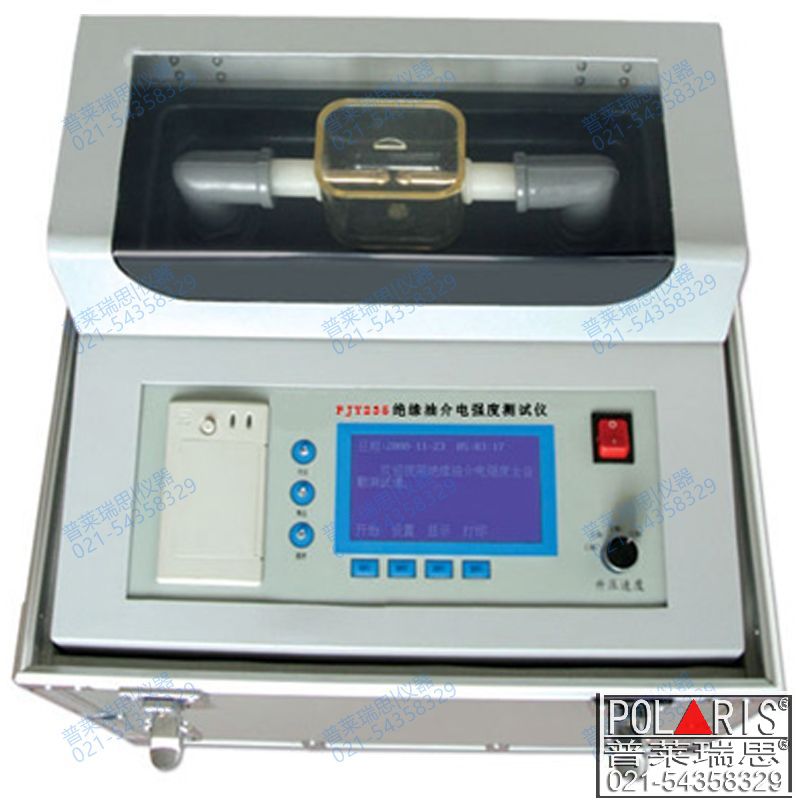

PJY235型绝缘油介电强度测试仪
产品简介
PJY235型绝缘油介电强度测试仪
订购热线:021-54358329
产品介绍
PJY235型绝缘油介电强度测试仪



仪器特点 :

1、仪器采用大容量单片机控制,工作稳定可靠。
2、仪器内设宽范围看门狗电路杜绝了死机现象。
3、多种操作选择,仪器程序设有1986、2002两种国标和自定义操作,能适应不同用户的多种选择。
4、仪器油杯采用复合材料一次浇注而成杜绝了漏油和易碎的现象。
5、仪器独特的高压端采样设计让测试值直接进入A/D转换器,避免了在模拟电路中造成的
  误差,使测量结果更加准确。
6、仪器内部具有过流、过压、短路保护等功能,并且具有极强的抗干扰能力,电磁兼
  容性好。
7、便携式结构,携带方便,户内外使用均可。

技术指标

升压器容量:1.5KVA
升压速度 :2.0kV/s,2.5kV/s,3.0kV/s,3.5kV/s可选
输出电压 :0—80kV
电源畸变率:<1%
显示方式 :大屏幕液晶汉字显示
电极间隙 :标准2.5mm
外型尺寸 :长420mm宽450mm高430mm
仪器重量 :26kg
使用条件 :
环境温度 :0℃—+40℃
相对湿度 : ≤85%
工作电源 :AC220V±20%
电源频率 :50Hz±5Hz
功 率  :<200W

PJY235 type of insulating oil dielectric strength tester

Instrument features:
1, the instrument uses a large-capacity single-chip control, stable and reliable.
2, the instrument equipped with a wide range of watchdog circuit to eliminate the phenomenon of death.
3, a variety of operating options, instrument procedures has 1986,2002 both GB and custom actions to adapt to the different users
A variety of options.
4, the composite instrument oil cup pouring once made ​​to prevent oil spills and fragile phenomenon.
The unique high-pressure end sampling design test values ​​directly into the A / D converter, avoid analog circuits caused
Error, the measurement results more accurate.
Instrument internal over-current, over voltage, short circuit protection, and other functions, and has a very strong anti-jamming capability, EMC
The capacitive good.
7, portable structure, easy to carry, can be indoor and outdoor use.
Technical indicators:
Boost Capacity: 1.5KVA
Boosting speed: 2.0kV / s, 2.5kV / s, 3.0kV / s, 3.5kV / s Optional
Output voltage :0-80kV
Power distortion factor: <1%
Display: Large-screen LCD display
Electrode gap: 2.5mm standard
Dimensions: 420mm wide 450mm high 430mm
Instrument Weight: 26kg
Conditions of Use:
Ambient temperature: 0 ℃ - +40 ℃
Relative humidity: ≤ 85%
Working power: AC220V ± 20%
Power frequency: 50Hz ± 5Hz
Power: <200W
